SYSTEM FOOTPRINT

DIMENSIONS L x W x H inches (mm)

  • 44" x 33" x 54" (1118 mm x 838 mm x 1372 mm)

WEIGHT pounds (kg)

  • 630-1075 lbs (286-488 kg)

AVAILABLE ACCESSORIES (FACTORY INSTALLED)

  • CO Monitor
  • Air storage and containment fill stations allow for customization to meet specific requirements

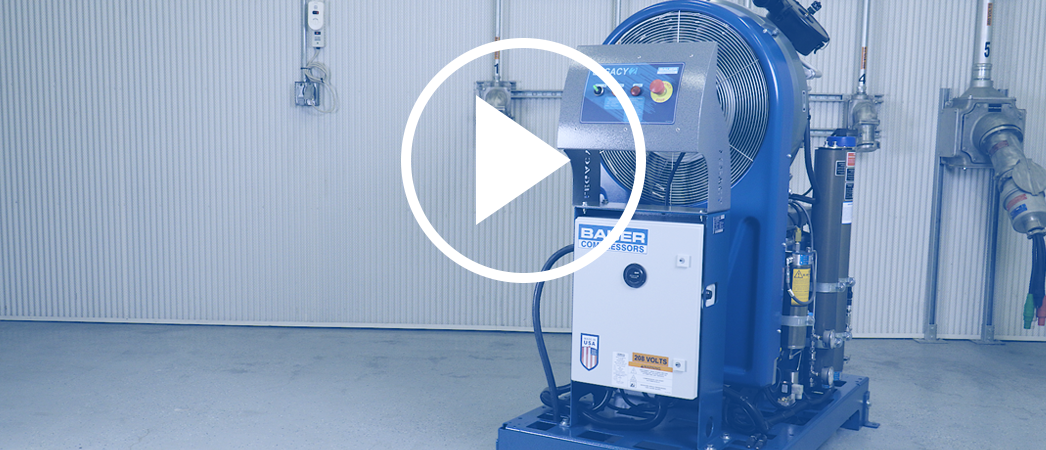

STANDARD SCOPE OF SUPPLY -  COMPRESSOR MODULE

  • Open vertical configuration made of formed sheet and plate goods provides a firm foundation for all pressure bearing components
  • BAUER PLC based controller
  • NEMA 4 rated electrical enclosure with UL® listed control panel
  • All wiring harnesses incorporated within a corrugated loom with number coding for easy system diagnosis
  • Emergency stop push button
  • Automatic condensate drain system
  • Compressor on/off, final pressure, oil pressure, high temperature shutdown

TECHNICAL DATA

Model Charging Rate1 Number of Stages Motor FAD2 RPM Purification System
  SCFM l/min   HP kW
6000 PSIG (414 BAR)
Legacy 2-8 E1/E3 8 227 3 7.5 5.6 7.5 1450 P2 B-SECURUS
Legacy 2-13 E1/E3 13 368 4 10 7.5 10.8 1420 P2 B-SECURUS
Legacy 2-18 E3 18 510 4 15 11 15 1325 P5 B-SECURUS

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.

E1= Single phase electric, 230 VAC/60 Hz
E3=Three phase electric, 208 VAC/60 Hz
