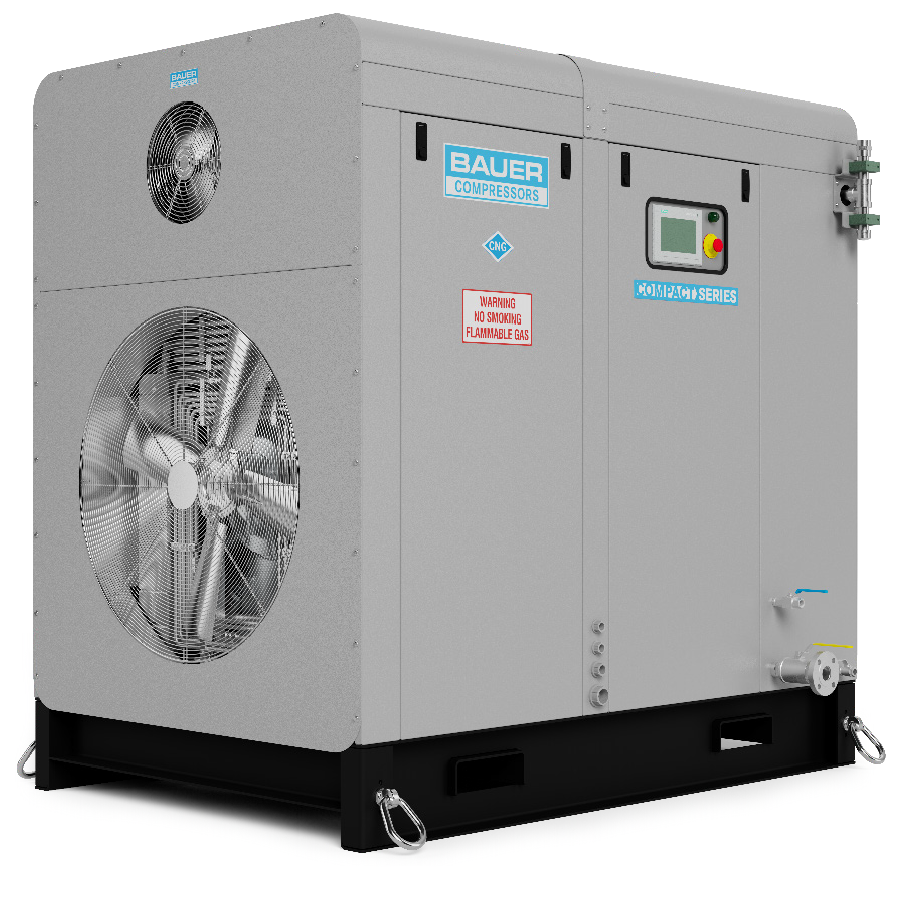

To see the COMPACT XL C22 Flyer
SYSTEM FOOTPRINT
Dimensions LxWxH inches (mm) approx.
- 80.125” x 54” x 79” (2035mm x 1372mm x2007mm)
WEIGHT pounds (kg) approx.
- 3200-4500 lbs (1066-2042 kgs)
Depending upon model and options
*Dimensions exclude vent stack
TECHINCAL DATA
| Model | Inlet Pressure | Final Pressure | Flow | Running Speed | Motor | |||||
| PSIG | PSIG | |||||||||
| Min | Max | Max | CFM | DGE/H | GGE/H | RPM | HP | kW | ||
| C22.2 | 0 | 3.6 | 5000 | 40 | 16.9 | 19.7 | 1200 | 40 | 29.8 | |
| C22.2 | 0 | 3.6 | 5000 | 59 | 25.4 | 29.5 | 1800 | 50 | 37.3 | |
| C22.4 | 29 | 65 | 4350 | 47 | 19.6 | 22.8 | 1200 | 40 | 29.8 | |
| C22.4 | 29 | 65 | 4350 | 69 | 29.4 | 34.2 | 1800 | 50 | 37.3 | |
Note: All capacities and motor sizes are based on pipeline quality natural gas supplied at the maximum allowable inlet pressure to the compressor and maximum discharge pressure.
For all models, a lower inlet pressure is possible, but with reduced capacity and possibly reduced discharge pressure.
Performances are based on ISO 1217 conditions, and performance tolerance is +/- 5%. Consult BAUER for performance at other conditions.
