To see the entire He 22 XL Flyer
STANDARD SCOPE OF SUPPLY
- Direct coupled
- Air-coolded
- B-Control
- Automatic Condensate Drain
- Automatic Start/Stop
- Interstage Separators
- TEFC Motor
- 2 Year Warranty
OPTIONAL ACCESSORIES
- BAUER CONNECT
- Interstage Pressure & Temperature Sensor
- Vapor Recovery Tank & Pressure Sensor
- Crankcase Heater
SYSTEM FOOTPRINT

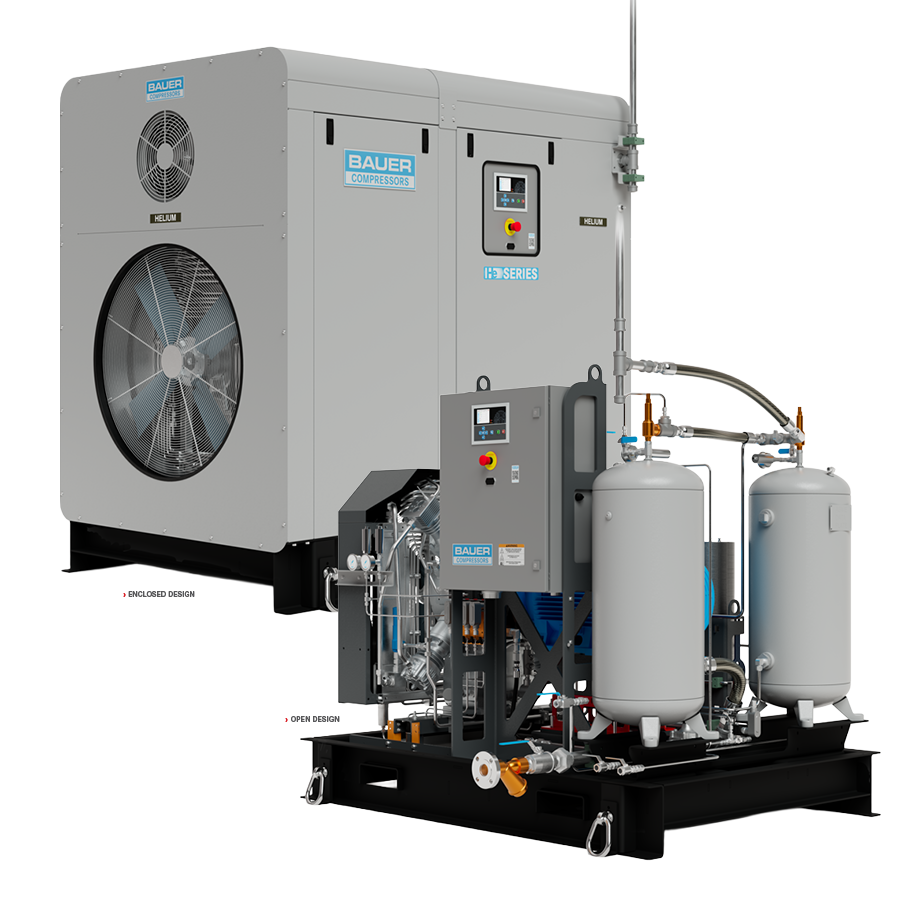

OPEN DESIGN
Dimensions L x W x H inches (mm) approx.
- 80” x 54” x 69” (2032 mm x 1372 mm x 1753 mm)
ENCLOSED DESIGN
Dimensions L x W x H inches (mm) approx.
- 80” x 54” x 79” (2032 mm x 1372 mm x 2007 mm)
WEIGHT pounds (kg) approx.
- 4500 lbs (2042 kg)
| Model | Inlet Pressure | Shutdown Pressure | Max PSV Setting | Flow | Number of Stages | Speed | Motor | |||||||
| BARG | PSIG | |||||||||||||
| Min | Max | Min | Max | PSIG | BARG | PSIG | BAR | CFM | m3/hr | RPM | HP | kW | ||
| DIRECT DRIVEN | ||||||||||||||
| IK22.5 | 0 | 0.3 | 0 | 4.3 | 4785 | 330 | 5100 | 352 | 33.2 | 56 | 5 | 1170 | 30 | 22 |
| IK22.5 | 0 | 0.3 | 0 | 4.3 | 4789 | 330 | 5100 | 352 | 53 | 90 | 5 | 1770 | 50 | 37 |
| IK22.6 | 0 | 0.03 | 0 | 4.3 | 4350 | 300 | 4640 | 320 | 25.8 | 44 | 4 | 1170 | 30 | 22 |
| IK22.6 | 0 | 0.03 | 0 | 4.3 | 4350 | 300 | 4640 | 320 | 35.3 | 60 | 4 | 1170 | 40 | 30 |
1 Volume flow rate according to ISO 1217. Valid for Helium. Contact BAUER for performance verification. Capacities referenced to atmospheric inlet pressure. Motor power valid for max. inlet and final pressure. Actual performance values may vary depending on site conditions.
