 BAUER XXL™ SERIES CNG System Diagram

Diagram of Bauer XXL™ Series CNG System

BAUER C26 XXL MOBILE

Self-contained transportable CNG System configured for plug-and-play operation with instant site set-up. Flexible inlet pressure range from 5-215 psig.

SPECIFICATIONS

  • 250-275 HP (187-205 kW)
  • 360 scfm (612 m3/h)
  • 5000 psig (345 bar) psig max discharge pressure

SYSTEM FOOTPRINT

Dimensions LxWxH inches(mm)

  • 40’ X 8’ X 9.5’ (12,192 mm X 2,438 mm X 289 mm)

BAUER C23 XXL SYSTEM

SPECIFICATIONS

  • 270-335 HP (200-250 kW)
  • 340-761 scfm (578-1293 m3/h)
  • 5000 psig (345 bar) max discharge pressure

SYSTEM FOOTPRINT

Dimensions LxWxH inches(mm)

  • 297.6” X 99.6” X 117”
    (297.6 mm X 2529.84 mm X 2971.8 mm)

WEIGHT pounds (kg) approx.

  • 22700 lbs (10297 kg)

BAUER C52 XXL SYSTEM

SPECIFICATIONS

  • 475-550 HP (355-410 kW)
  • 720 scfm (1244 m3/h)
  • 5000 psig (345 bar) max discharge pressure

SYSTEM FOOTPRINT

BAUER GRU® 15/28

  • 100” W X 130” L X 117” H (2540 mm W X 3886 mm L X 2971 mm H)

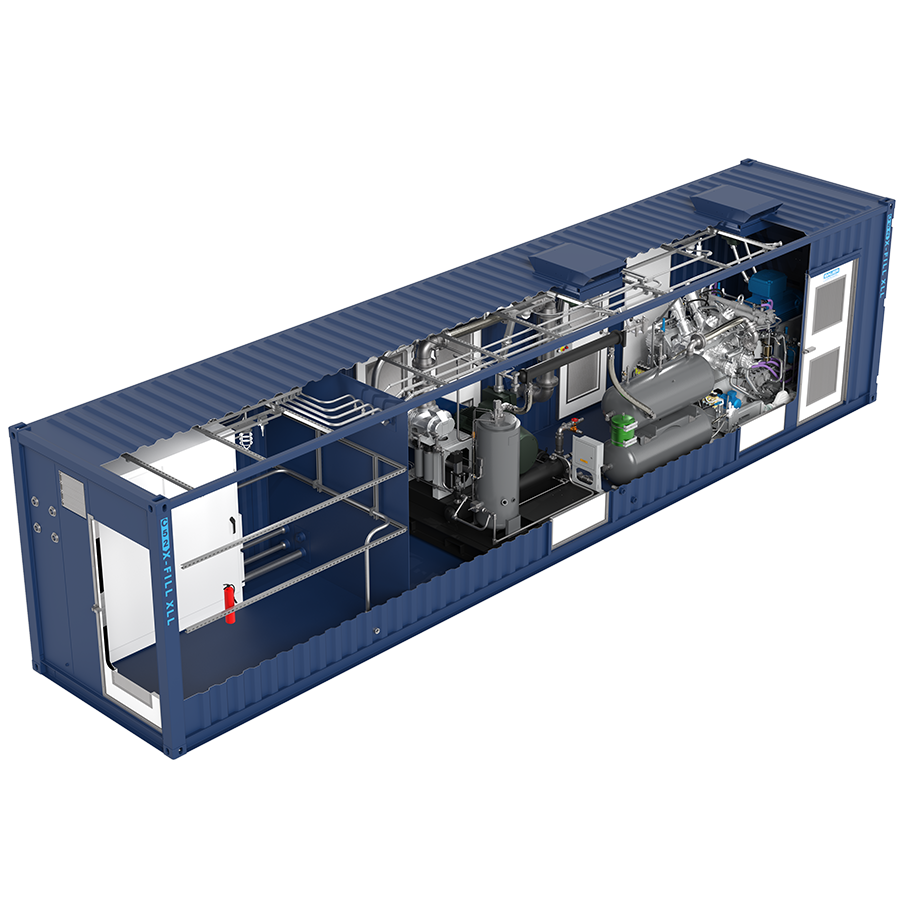

C.52.12 X-FILL

  • 297.6” L X 99.6” W X 117” H (297.6mm x 2529.84mm x 2971.8mm)

TECHNICAL DATA

Model Gas Inlet Pressure Range
(see note 1 & 4)
Final Discharge Pressure CNG Flow Capacity (see note 2) Number of Stages Motor (see note 3)
  PSIG BAR PSIG BAR
  MIN  MAX MIN MAX     SCFM M3/H DGE/H  DLE/H GGE/H GLE/H   HP kW
C23-XXL 5 25 0.35 1.72 5000 345 115 195 49 186 58 219 5 75-90 56-67
C23-XXL Duplex 5 25 0.35 1.72 5000 345 230 390 98 371 116 439 5 150-180 112-135
C26-XXL 5 25 0.35 1.72 5000 345 360 612 153 579 182 689 5 250-275 187-205
C26-XXL Mobile 5 25 0.35 1.72 5000 345 360 612 153 579 182 689 5 250-275 187-205
C52-XXL 5 25 0.35 1.72 5000 345 720 1244 307 1162 363 1374 5 475-550 355-410

Note 1: The volumetric capacity stated in the table can be achieved for all inlet pressure scenarios upwards of 5 psig inlet pressure. The size for the first stage GRU compressor varies with available gas inlet pressure.
Note 2: Volumetric performance stated in ISO1217 Standard Conditions:  14.5 psig, 68° F, 0%RH  (100,000 kPA, 20° C, 0%RH)
Note 3: Motor power (HP/kW) requirement depends on inlet pressure which determines the size of the GRU rotary screw booster used for the application
Note 4: Gas inlet pressures above 25 psig require a gas inlet regulator
