SYSTEM FOOTPRINT
Dimensions LxWxH inches(mm)
- 55” x 57” x 52” (1397mm x 1448mm x 1321mm)
WEIGHT pounds (kg) approx.
- 1430-1515lbs (649-687 kgs)
Depending upon the model and options
TECHNICAL DATA
| Model | Number of Stages | Running Speed | Motor Power | Inlet Pressure Range | Final Pressure1 | Flow Capacity at Min/Max Inlet Pressure | |||||
| RPM | hp | kW | PSIG | BARG | PSIG | BARG | SCFM | m3/h | kg/hr | ||

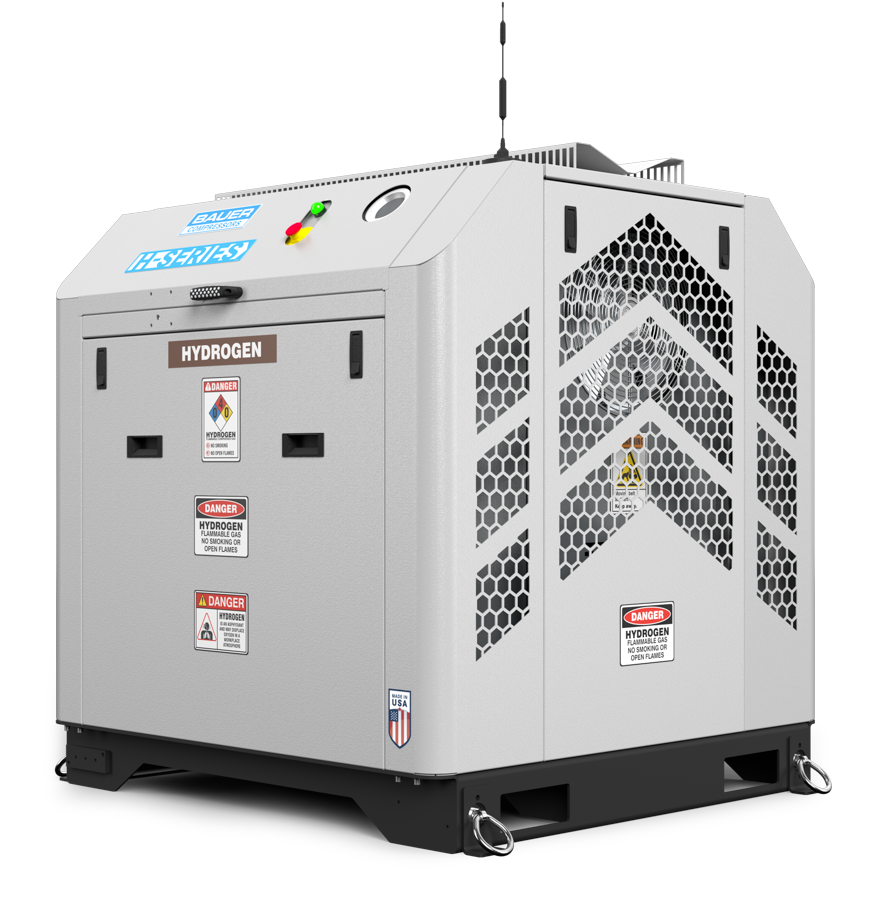

| H-Series 1 | |||||||||||
| H120-5 | 4 | 960 | 5 | 4 | 0.29-4.35 | 0.02-0.3 | 5000 | 350 | 3.1-4.20 | 5.4-7.1 | 0.44-0.60 |
| H120-7.5 | 4 | 1380 | 7.5 | 5.5 | 0.29-4.35 | 0.02-0.3 | 5000 | 350 | 4.4-6.0 | 7.5-10.1 | 0.62-0.85 |
Note: All capacities are referenced minimum and maximum inlet pressure shown. Performance tolerance +/- 5%. *H120-5=230 V, 1 Phase, 60 Hz; H120-7.5= 230-460 V, 3 Phase, 60 Hz
1Maximum allowable working pressure = max. setting safety valve; final pressure (shutdown pressure) lower.
