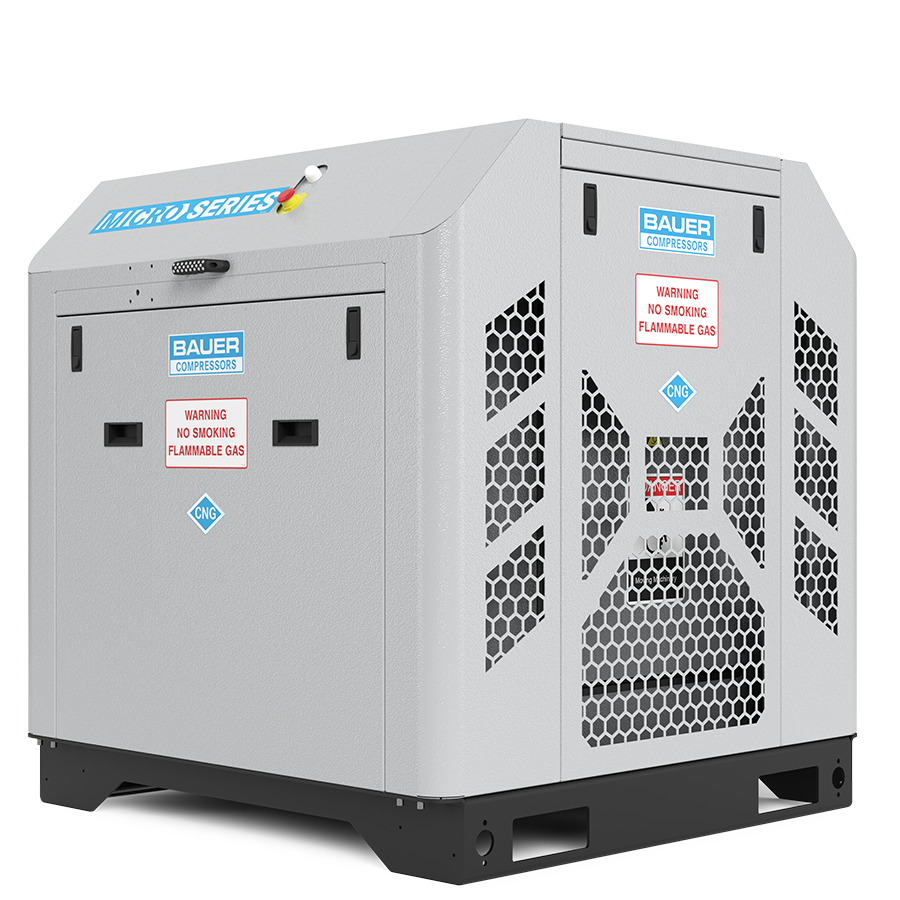

SYSTEM FOOTPRINT

*DIMENSIONS L x W x H inches (mm)

  • 55” x 57” x 52” (1397mm x 1448mm x 1321mm)

WEIGHT pounds (kg) approx.

  • 1430-1515lbs (649-687 kgs)

Depending upon model and options

TECHNICAL DATA

Model Inlet Pressure Final Pressure Capacity Number of Stages Running Speed Motor
  PSIG BAR PSIG BAR
  MIN  MAX MIN MAX MIN MAX CFM M3/H DGE/H  DLE/H GGE/H GLE/H   RPM hp kW

C120-6 1 5 0.07  0.34  5000 345 6.3 11 2.7 10.2 3.2 12.1 3 965 5 3.7
C120-9 1 5 0.07 0.34 5000 345 9 15 4 15.1 4.5 17 3 1350 7.5 5.5

Note: All capacities are referenced to maximum inlet pressure. Capacity is reduced if inlet pressure is less than maximum. Performance tolerance +/- 5%.

*C120-6=230 V, 1 Phase, 60 Hz; C120-9= 230-460 V, 3 Phase, 60 Hz
