To see the C23 M-Series Water-cooled Flyer

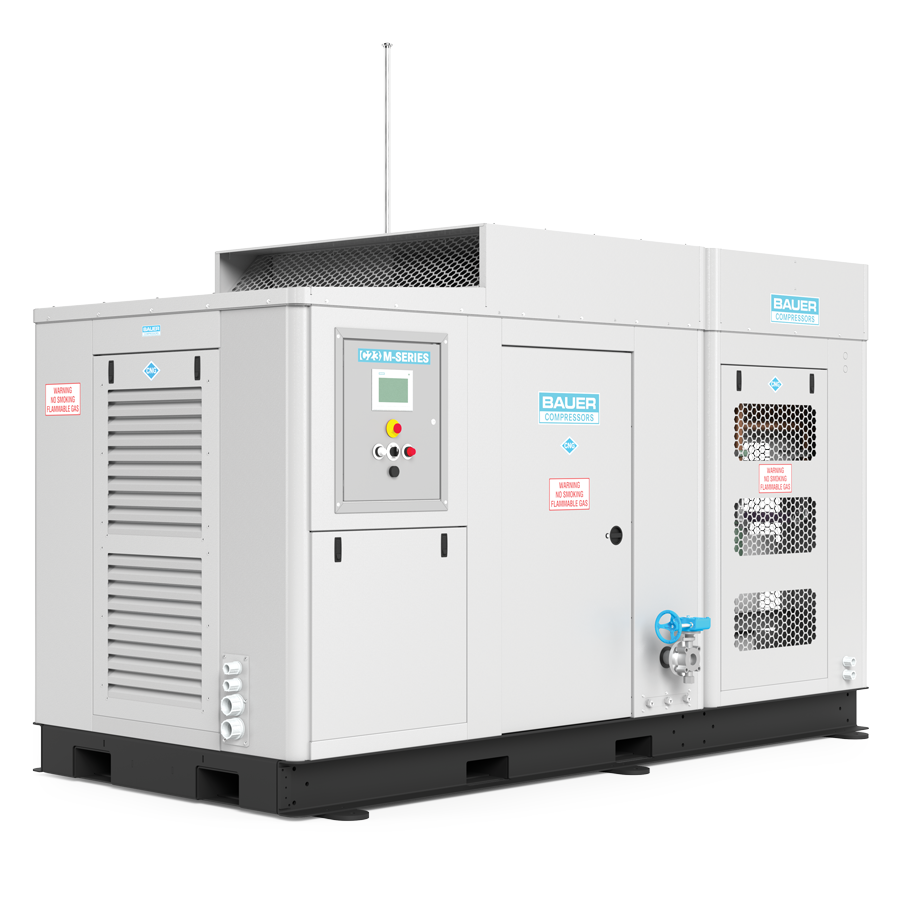

SYSTEM FOOTPRINT
DIMENSIONS L x W x H inches (mm)*
- 146” x 68” x 90” (3708mm x1727mm x 2286mm) with cooler
- 96” x 68” x 90” (3708mm x1727mm x 2286mm) without cooler
*Dimensions exclude vent stack
WEIGHT pounds (kg)
- 11,500 lb (5216 kg) with cooler
- 9,000 lb (5216 kg) without cooler
APPLICATIONS
- Fleet fueling stations
- Municipal and utility operations
- Transit and logistics facilities
- Industrial and infrastructure CNG installations
LOW COST OF OWNERSHIP
- Designed for long service intervals
- Heavy‑duty components built for extended operational life
- Efficient system design supports economical operation
- Backed by BAUER’s global service network and lifetime support philosophy
OPTIONAL FEATURES
- Glycol cooler
- Plate heat exchanger
- High-pressure gas dryer
- High-pressure dewpoint sensor
- Heavy-duty weatherproof enclosure
TECHNICAL DATA
| Model | Inlet Pressure | Final Pressure | Capacity | Number of Stages | Running Speed | Motor | ||||||||||
| PSIG | BAR | PSIG | BAR | |||||||||||||
| MIN | MAX | MIN | MAX | MAX | MAX | CFM | M3/H | DGE/H | DLE/H | GGE/H | GLE/H | RPM | HP | kW | ||
| C23.2 | 10 | 15 | 0.7 | 1 | 5000 | 345 | 67 | 113 | 28 | 107 | 33 | 126 | 4 | 1200 | 50 | 37 |
| C23.2 | 10 | 15 | 0.7 | 1 | 5000 | 345 | 100 | 169 | 43 | 161 | 50 | 189 | 4 | 1800 | 75 | 56 |
| C23.10 | 30 | 65 | 2 | 4.5 | 5000 | 345 | 87 | 147 | 37 | 140 | 44 | 165 | 4 | 1200 | 40 | 30 |
| C23.10 | 30 | 65 | 2 | 4.5 | 5000 | 345 | 129 | 219 | 55 | 208 | 65 | 245 | 4 | 1800 | 60 | 45 |
| C23.12 | 65 | 145 | 4.5 | 10 | 5000 | 345 | 115 | 195 | 49 | 185 | 58 | 218 | 4 | 1200 | 60 | 45 |
| C23.13 | 116 | 200 | 8 | 14 | 5000 | 345 | 119 | 201 | 51 | 191 | 60 | 225 | 4 | 1200 | 50 | 37 |
| C23.13 | 116 | 200 | 8 | 14 | 5000 | 345 | 177 | 301 | 76 | 286 | 89 | 337 | 4 | 1800 | 75 | 56 |
Note: All capacities are based on pipeline quality natural gas supplied at the maximum allowable inlet pressure to the compressor and 3600 psig discharge pressure. For all models lower inlet pressure is possible but with reduced capacity and possibly reduced discharge pressure. Motor power is reference to maximum allowable inlet pressure and 4500 psig discharge pressure. Consult BAUER for performance at other conditions. Performance tolerance +/- 5% 1) + or - 5% dB. Please contact your BAUER representative for details about our warranty.
