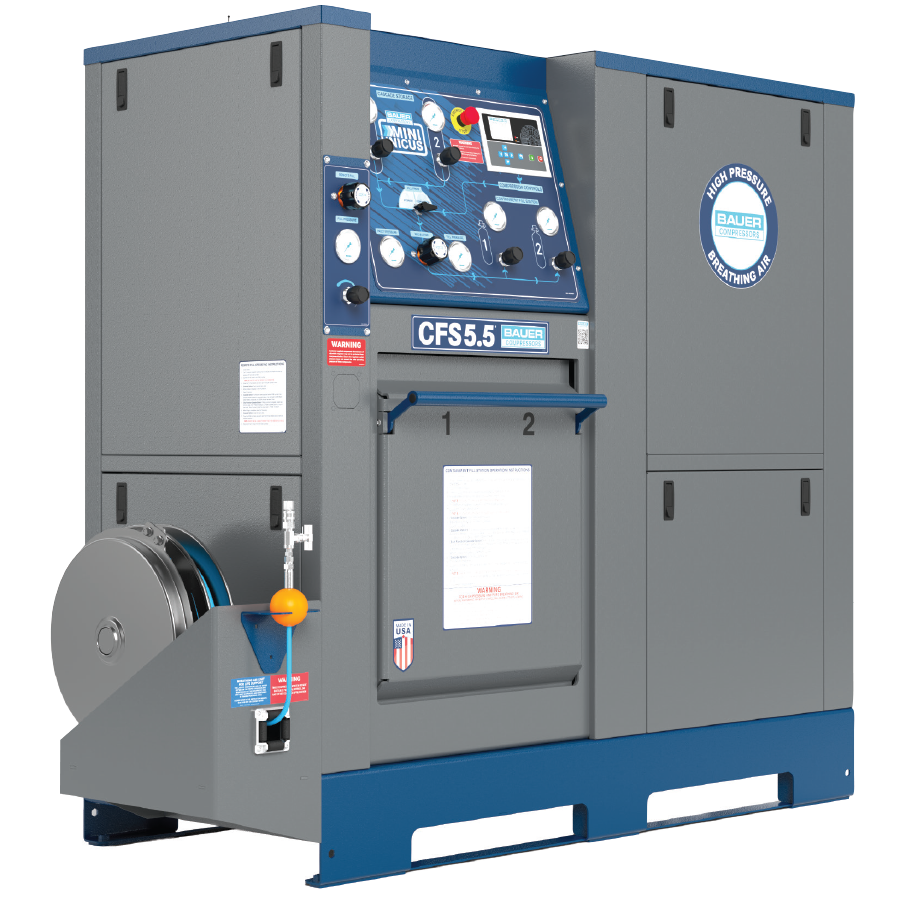

SYSTEM FOOTPRINT
DIMENSIONS L X W X H inches (mm)
- Base Model: 72 x 38 x 72 (1829 x 966 x 1829)
- With optional hose reel: 84 x 38 x 72 (2134 x 966 x 1829)
WEIGHT pounds (kg)
- Base Model w/ ASME: 2875lbs (1305 kgs)
- With optional hose reel and ASME: 3000lbs (1361 kgs)
- Base Model w/ DOT: 2445lbs (1110 kgs)
- With optional hose reel and DOT: 2570lbs (1166 kgs)
STANDARD SCOPE OF SUPPLY
- BAUER breathing air purification system with B-SECURUS
- BAUER PLC based controller with multicolor touchpad display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button
- Hinged fill control panel with Lexan laminate air flow/fill schematic
- Priority refill system with storage bypass valve
- Automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor. Automatic “Full” indication and compressor shutdown
- Two (2) UN code stamped air cylinders installed in an integral rack
- Sound attenuating enclosure with slam-action latches and lift-off type hinges
- NFPA 1900: 2024 Compliant Two Position Containment Fill Station accommodates SCBA or SCUBA cylinders up to 31” overall length
AVAILABLE ACCESSORIES (Factory Installed)
- Regulated (adjustable) remote fill hose connection to include high pressure hose reel and 100” of 6000 psig rated high pressure hose
- ASME air storage cylinders in lieu of standard UN Bottles
- Additional air storage cylinders
- Regulated (adjustable) panel mounted remote fill hose connection
TECHNICAL DATA
| Model | FAD2 | Charging Rate1 | Number of Stages | Motor | RPM | Purification System | ||
|---|---|---|---|---|---|---|---|---|
| SCFM | SCFM | l/min | HP | kW | ||||
| 6000 PSIG (414 BAR) | ||||||||
| MINI-UNI08-E1 | 7 | 8.4 | 238 | 3 | 7.5 | 5.6 | 1250 | P2 B-SECURUS |
| MINI-UNI08-E3 | 7 | 8.4 | 238 | 3 | 7.5 | 5.6 | 1250 | P2 B-SECURUS |
| MINI-UNI10-E1 | 8.1 | 9.7 | 275 | 4 | 7.5 | 5.6 | 1180 | P2 B-SECURUS |
| MINI-UNI10-E3 | 8.1 | 9.7 | 275 | 4 | 7.5 | 5.6 | 1180 | P2 B-SECURUS |
| MINI-UNI13-E1 | 10 | 13 | 368 | 4 | 10 | 7.5 | 1420 | P2 B-SECURUS |
| MINI-UNI13-E3 | 10 | 13 | 368 | 4 | 10 | 7.5 | 1420 | P2 B-SECURUS |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig. 2) Compressor capacity referenced to standard inlet conditions.
E1 = Single phase electric, 230 VAC/60 Hz. E3 = Three phase electric, 230/460 VAC/60 Hz. Other voltages available on request.
