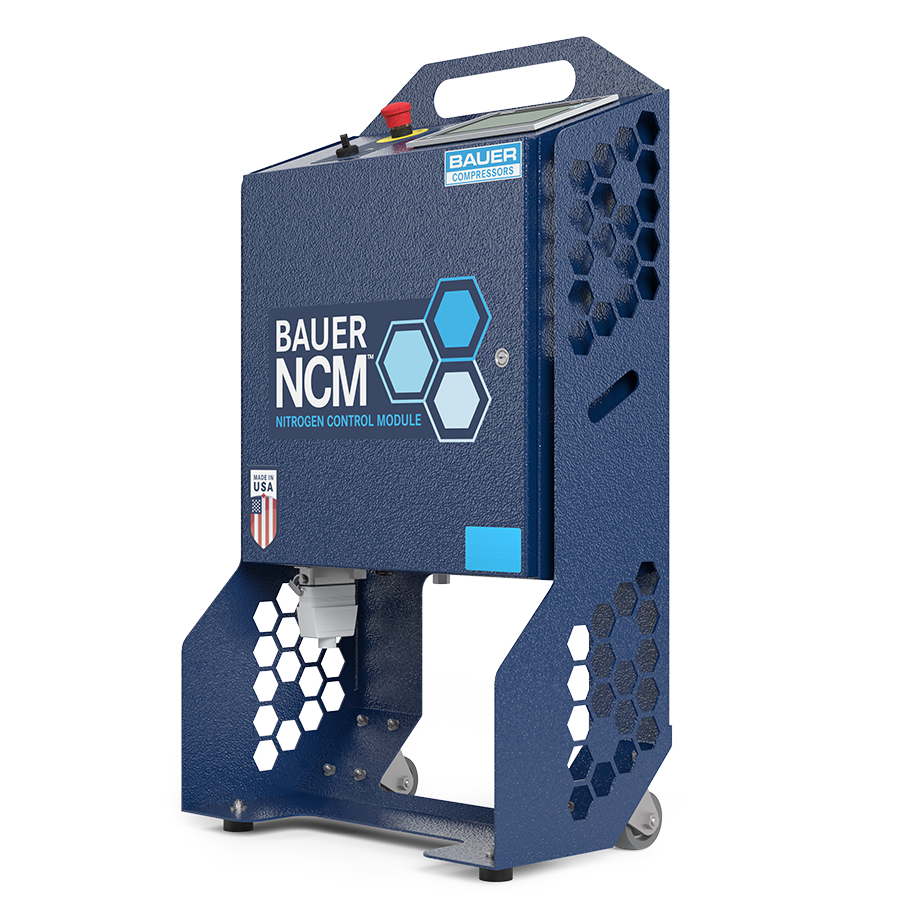

SYSTEM FOOTPRINT

Wall or Machine Mounted

DIMENSIONS L X W X H inches (mm)

  • Unit: 20.75 x 8.75 x 27.75 (527 x 222 x 704)
  • Unit with mount: 22 x 13.5 x 39.5 (559 x 343 x 1003)

WEIGHT pounds (kg)

  • Unit Weight: 1 Channel Weight : 60 (27.2)
  • Unit Weight: 2 Channel Weight : 70 (31.8)
  • Mount Weight : 14.7 (6.67)

STANDARD FEATURES

  • Compact design
  • Easily interfaces with any injection molding machine
  • Single or 2-channel configuration
  • Precise pressure control with TRUE TRACK RAMPING® and real time monitoring
  • Process parameter storage
  • Lowest maintenance cost in the industry
  • Mold purge control with OXYPURGE™ Technology

mail-icon
Need assistance with selecting the correct solution to meet your specific requirements?

EMAIL THE EXPERTS AT BAUER

pdf-icon
To see the BAUER Nitrogen Controllers brochure

DOWNLOAD

STANDARD SCOPE OF SUPPLY

STANDARD FEATURES

  • Compact design
  • Easily interfaces with any injection molding machine
  • Single or 2-channel configuration
  • Precise pressure control with TRUE TRACK RAMPING and real time monitoring
  • Process parameter storage
  • Lowest maintenance cost in the industry
  • Mold purge control with OXYPURGE Technology



CONTROL SYSTEM

State-of-the-art control system with intuitive HMI interface allows for simple operation and real-time diagnostics

  • 7” touch-screen color display
  • Precise electro-pneumatically controlled valves
  • Accurate control of pressure profiles

COST OF OWNERSHIP

Like all BAUER controllers, the system is designed for long periods between maintenance intervals and has a very low cost of ownership.

  • Lifetime BAUER support

TECHNICAL DATA

Model Inlet Pressure Outlet Pressure Power
  PSIG BAR PSIG BAR Hz V

BAUER NCM 6000 414 5000 345 60 or 50 110 or 220
BAUER NCM-LP 6000 414 1500 103 60 or 50 110 or 220
