SYSTEM FOOTPRINT
DIMENSIONS L X W X H inches (mm)
- 125" x 95" x 95"
(3175mmx 2413mmx 2413mm)
WEIGHT pounds (kg)
- 7500 lbs (3402 kg)
AVAILABLE OPTIONS
- Marine/offshore special paint
- Class I, Div II for hazardous zone classification
- Two-stage intake filter for high-dust environments
- CE compliance
- Modular high-pressure storage cylinder systems (UN ISO or ASME) with integrated high-flow pressure regulation panel
TECHNICAL DATA
| Model | Feed Air Compressor | Booster Compressor | Nitrogen Flow at 98% Purity | Nitrogen Flow at 99% Purity | Nitrogen Flow at 99.5% Purity | ||||||
| Motor | Model | Motor | |||||||||
| HP | kW | HP | kW | SCFM | M3/HR | SCFM | M3/HR | SCFM | M3/HR | ||
| Final Pressure 5000 PSIG (345 BAR) | |||||||||||

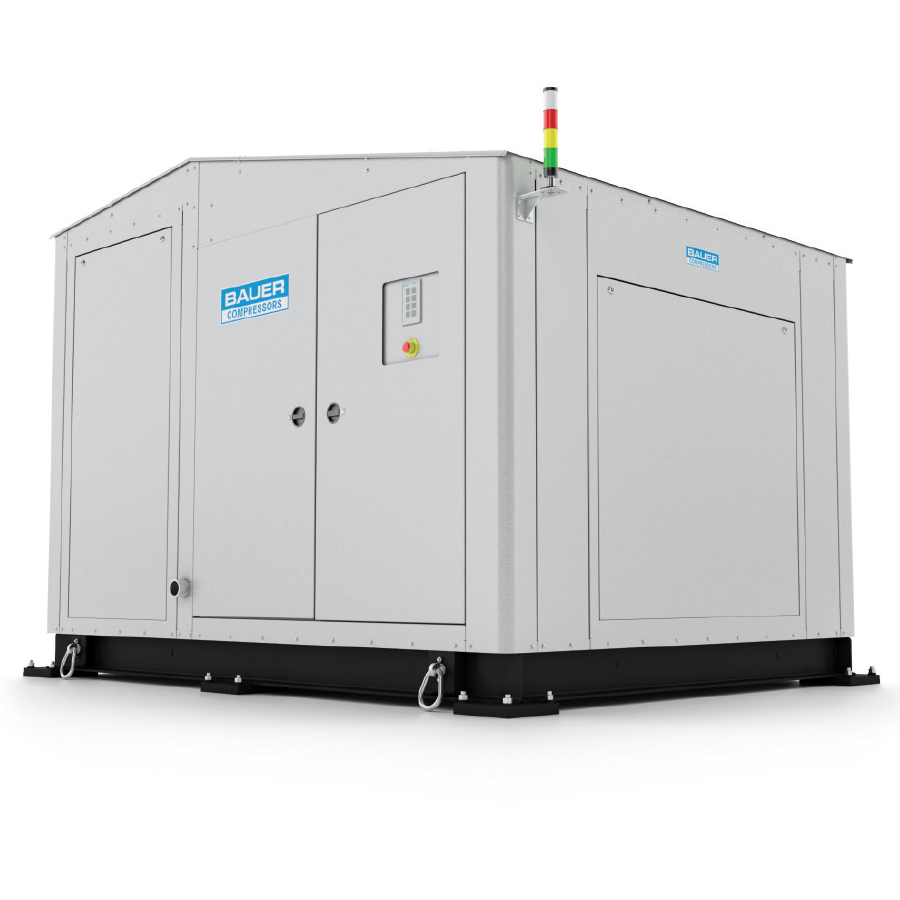

| SNG® 9 | 75 | 56 | GIB 22.12 | 45 | 34 | 65 | 110 | 54 | 92 | 39 | 66 |
