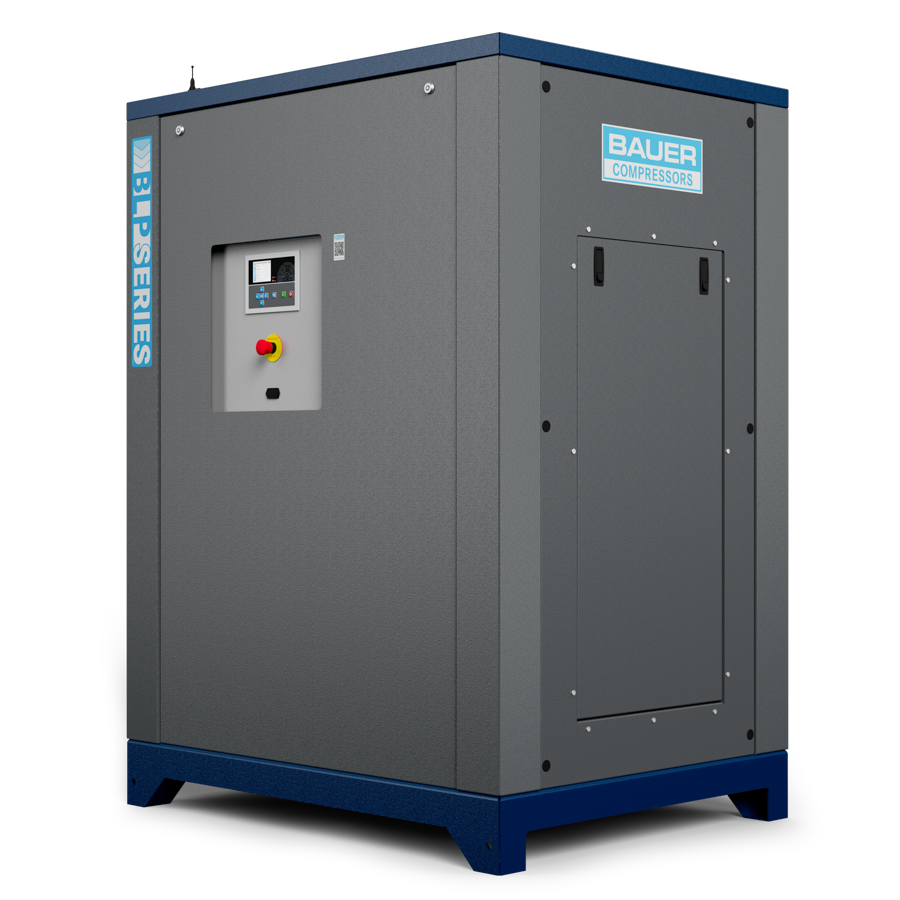

To see the BLP -9 Series Flyer
STANDARD SCOPE OF SUPPLY
- BAUER Rotorcomp® EVO-NK+ high-efficiency screw air-end with integrated air/oil separator manifold
- Oil filter, inlet air filter, air/oil separator filter
- Horizontal belt-drive with TEFC motor
- Combination air/oil cooler with NEMA motor
- BAUER B-Control™ with touchscreen HMI
- BAUER CONNECT® IoT remote monitoring module
- Heavy-duty base skid and noise attenuation enclosure
- Stainless steel tubing on oil circuit
- 5-year bumper-to-bumper warranty, 10-year air-end warranty
OPTIONS
- Integrated B-DETECTION™ Technology for VOC and Dew Point monitoring
- Stand alone tank and refrigerated dryer
- Coalescing filter and particulate filter
SYSTEM FOOTPRINT
DIMENSIONS L X W X H inches (mm)
- 43” x 55” x 74.75” (1092.2mm x 1397mm x 1898.6mm)
WEIGHT pounds (kg)
- 2735lbs (1240.58 kg)
TECHNICAL DATA
| Model | Motor | Max Discharge Pressure | Max Flow Performance | |||
| HP | kW | PSIG | BAR | CFM | M3/H | |
| BLP 9-40 SERIES | ||||||
| BLP9-40.125 | 40 | 30 | 125 | 9 | 162.3 | 275.7 |
| BLP9-40.145 | 40 | 30 | 145 | 10 | 155.0 | 263.4 |
| BLP9-40.170 | 40 | 30 | 170 | 11.7 | 143.1 | 243.2 |
| BLP 9-60 SERIES | ||||||
| BLP9-60.125 | 60 | 45 | 125 | 9 | 240.5 | 408.7 |
| BLP9-60.145 | 60 | 45 | 145 | 10 | 227.7 | 386.9 |
| BLP9-60.170 | 60 | 45 | 170 | 11.7 | 174.8 | 357.6 |
| BLP 9-75 SERIES | ||||||
| BLP9-75.125 | 75 | 55 | 125 | 9 | 286.8 | 487.3 |
| BLP9-75.145 | 75 | 55 | 145 | 10 | 271.5 | 461.3 |
| BLP9-75.170 | 75 | 55 | 175 | 11.7 | 255.1 | 433.5 |
Preliminary results. Unit performance tested in accordance with ISO 217. Consult BAUER for performance at other conditions
