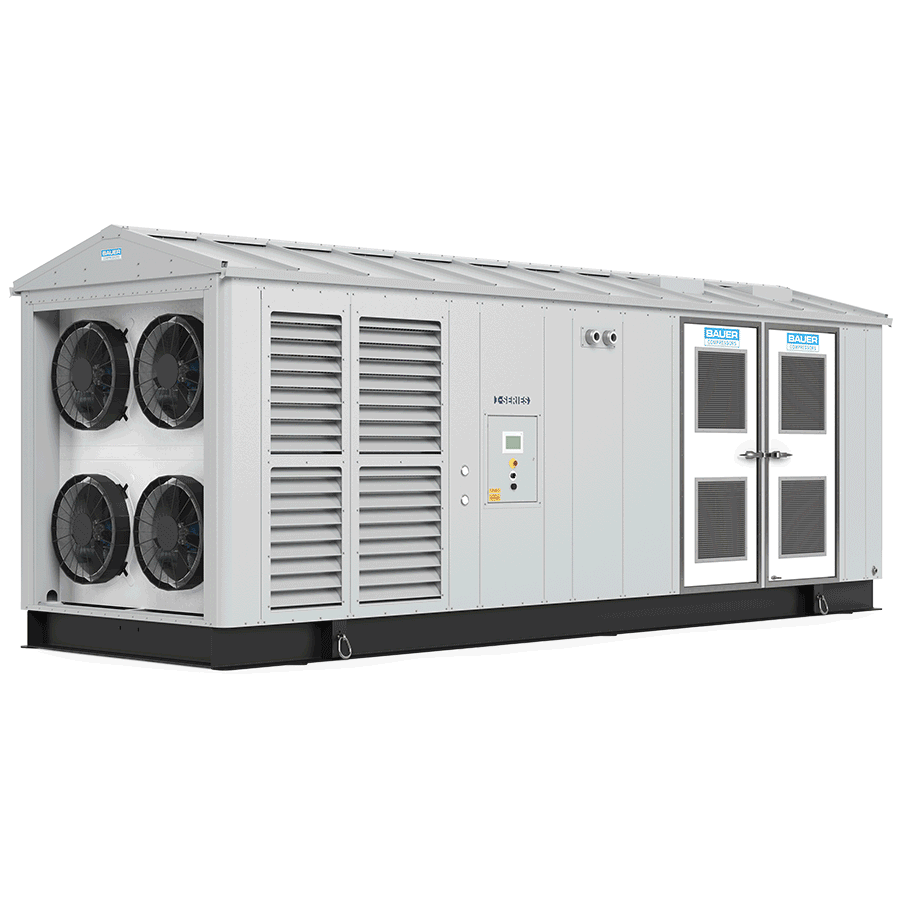

To see the I-Series 5 High-Pressure Flyer
SYSTEM FOOTPRINT
Dimensions L x W x H feet (mm)
- 24’ x 8’ x 9.5’ (7315 mm x 2438 mm x 2895 mm)
WEIGHT pounds (kg) approx.
- 25000 lbs (11340 kg)
TECHNICAL DATA
| Model | Max Inlet Pressure | Capacity FAD | RPM | Number of Stages | Moter | Drive | |||
| PSIG | BAR | SCFM | m3/hr | hp | kW | ||||
| GRU & IB23.12 (XXL) | 15 | 1 | 116 | 157 | 1500 | 5 | 85-100 | 64 | E3 |
| GRU & IB26.12 (XXL) | 15 | 1 | 367 | 520 | 1500 | 5 | 250-275 | 187-205 | E3 |
| GRU & IB52.12 (XXL) | 15 | 1 | 766 | 1044 | 1500 | 4 | 485-535 | 362-399 | E3 |
