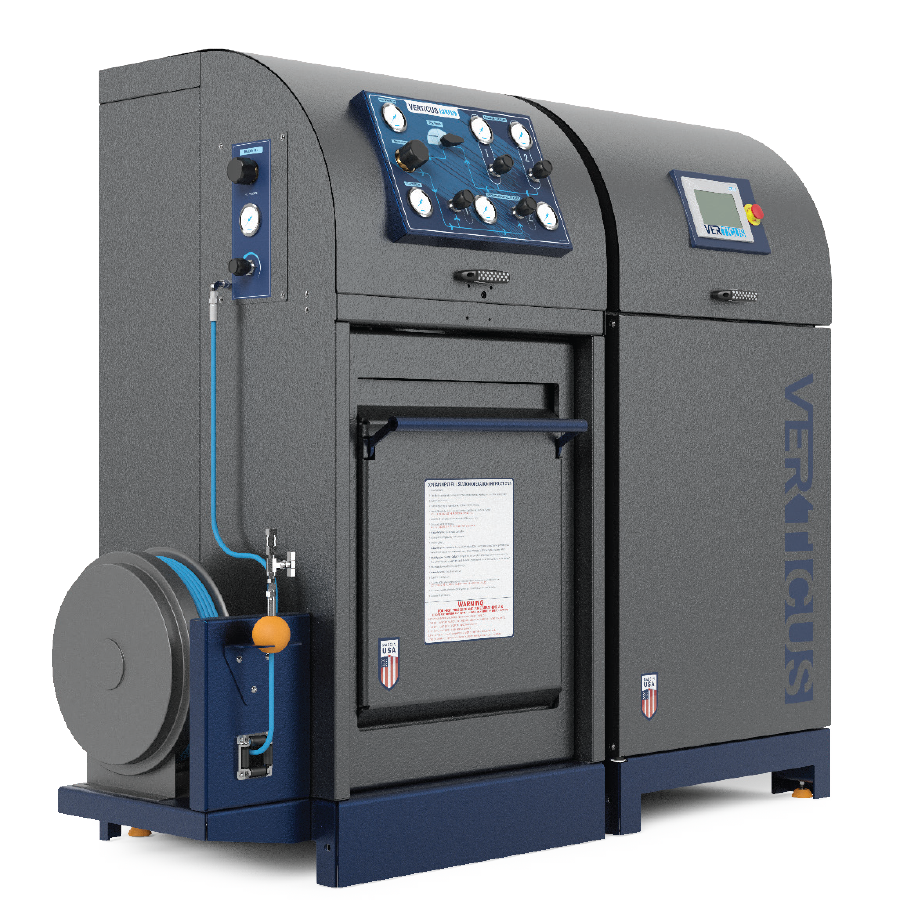

BAUER VERTICUS PLUS®
The same package amenities found in the VERTICUS® high pressure breathing air compressor system, plus a free-standing, aesthetically pleasing, multi-functional fill station module, are combined to create the BAUER VERTICUS PLUS®. BAUER’S performance-proven CFS5.5®-2S NFPA-compliant containment fill station; two (2) bank dual function cascade controls; integral air storage rack with two (2) UN code air storage cylinders; 3-way selector valve to select either air from the compressor or onboard air storage system all come together creating the ultimate fill station. Install the two (2) modules side by side as an all-in-one configuration or apart based on the installation site specifics. Flexibility is the key. Look to BAUER to unlock the possibilities.

Need assistance with selecting the correct solution to meet your specific requirements?
To see the entire GSA Catalog
STANDARD SCOPE OF SUPPLY COMPRESSOR MODULE
- BAUER breathing air purification system with SECURUS
- BAUER PLC based controller with 7” color HMI touchscreen display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button and automatic start/stop control
- Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic “Full” indication and compressor shutdown
- Inter-stage pressure gauges (locally mounted)
- Vertically hinged front operations panel and lift-off side maintenance access doors
- Inlet filter maintenance indicator
- Unique hinged front operations panel
STANDARD SCOPE OF SUPPLY - FILL STATION MODULE
- Dual function cascade controls
- Two (2) UN code stamped air cylinders installed in an integral rack
- 3-way selector valve
- NFPA 1901 2016 edition compliant 2 position containment fill station accommodates SCBA or SCUBA cylinders up to 31” overall length
- Aesthetically pleasing cabinetry
- Will work with any brand compressor
- Packaged together
SYSTEM FOOTPRINT
VAC05 – VAC26:
DIMENSIONS L x W x H inches (mm)
- 55” x 35” x 70” (1397mm x 737mm x 1778mm)
WEIGHT pounds (kg)
- 1000 - 1400 lb (453.6 - 635 kg)
AVAILABLE ACCESSORIES (FACTORY INSTALLED)
- CO monitoring system
- B-Kool (floor mount only)
- H2S monitoring system with audible alarm
TECHNICAL DATA
Model | Charging Rate1 | Number of Stages | Motor | FAD2 | RPM | Purification System | ||
---|---|---|---|---|---|---|---|---|
scfm | l/min | HP | kW | |||||
5000 PSIG (345 BAR) | ||||||||
VT-P/8-E1/E3 | 8.4 | 238 | 3 | 7.5 | 5.6 | 7 | 1250 | P2 SECURUS |
6000 PSIG (414 BAR) | ||||||||
VT-P/5-E1/E3 | 5 | 142 | 3 | 5 | 3.7 | 4 | 1050 | P2 SECURUS |
VT-P/10-E1/E3 | 9.7 | 275 | 4 | 7.5 | 5.6 | 8.1 | 1180 | P2 SECURUS |
VT-P/13-E1/E3 | 13 | 368 | 4 | 10 | 7.5 | 10.8 | 1420 | P2 SECURUS |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig
2) Compressor capacity referenced to standard inlet conditions
E1 = Single phase electric, 230 VAC/60 Hz.
E3 = Three Phase Electric, 208/230/460 VAC/60 Hz.
Other voltages available on request.
Dimensions and weights are approximate and are subject to change
