VERTICUS®

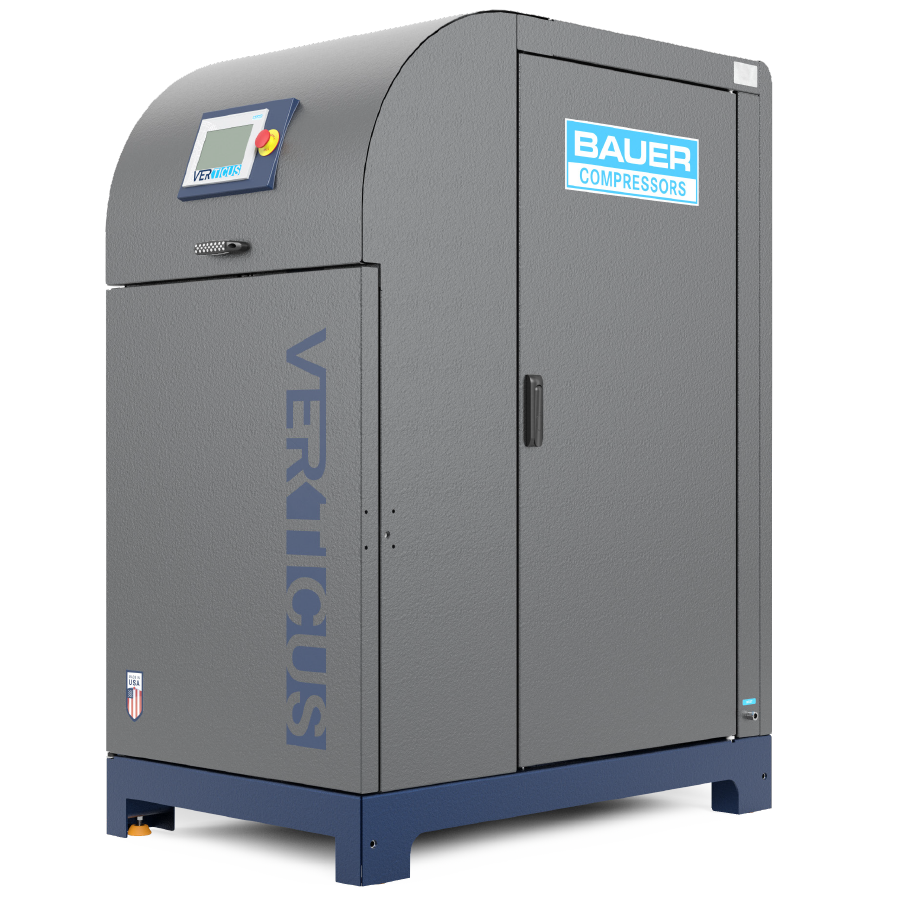

The days of “breadbox” designed compressor packages are over! Step up to the BAUER VERTICUS®. The updated sound attenuated cabinet is equipped with a unique, aesthetically pleasing, horizontally hinged, and gas shock-supported operations panel, ensuring direct and easy access to the drive belts. Vertically hinged and lift-off side maintenance access doors incorporating fast pin technology make removal of the doors a snap – no hand tools required! The rear panel incorporates integral handles and a tabbed lift-off design. The front vertically hinged access door is affixed with a hex keyed latch to eliminate the accidental opening of the door while the system is operating. Sound attenuation has been incorporated on every possible panel to provide a nice and quiet operating level of approximately 72 dB (within one meter). One package size accommodates BAUER high-pressure air-cooled compressors from 5 to 20 HP motors. Our new, larger, 7” HMI enhances the monitoring of system functions.

Need assistance with selecting the correct solution to meet your specific requirements?
To see the entire GSA Brochure
AVAILABLE ACCESSORIES (FACTORY INSTALLED)
- CO monitoring system
- B-Kool (floor mount only)
- H2S monitoring system with audible alarm
STANDARD SCOPE OF SUPPLY
- BAUER breathing air purification system with SECURUS
- BAUER PLC based controller with 7” color HMI touchscreen display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button and automatic start/stop control
- Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic "Full” indication and compressor shutdown
- Inter-stage pressure gauges (locally mounted)
- Vertically hinged front operations panel and lift-off side maintenance access doors
- Inlet filter maintenance indicator
- Unique hinged front operations panel
SYSTEM FOOTPRINT
VAC05 – VAC26:
DIMENSIONS L x W x H inches (mm)
- 55” x 35” x 70” (1397mm x 737mm x 1778mm)
WEIGHT pounds (kg)
- 1000 - 1400 lb (453.6 - 635 kg)
TECHNICAL DATA
Model | Charging Rate1 | Number of Stages | Motor | FAD2 | RPM | Purification System | ||
---|---|---|---|---|---|---|---|---|
SCFM | l/min | HP | kW | |||||
5000 PSIG (345 BAR) | ||||||||
VAC20-E3 | 21 | 595 | 4 | 15 | 11 | 17.5 | 1300 | P5 B-SECURUS |
VAC26-E3 | 26.4 | 748 | 4 | 20 | 15 | 22 | 1350 | P5 B-SECURUS |
6000 PSIG (414 BAR) | ||||||||
VAC5-E1/E3 | 5 | 142 | 3 | 5 | 3.7 | 4 | 1050 | P2 B-SECURUS |
VAC08-E-1/E3 | 8 | 227 | 3 | 7.5 | 5.6 | 7 | 1450 | P2 B-SECURUS |
VAC10-E1/E3 | 9.7 | 275 | 4 | 7.5 | 5.6 | 8.1 | 1180 | P2 B-SECURUS |
VAC13-E1/E3 | 13 | 368 | 4 | 10 | 7.5 | 10.8 | 1420 | P2 B-SECURUS |
VAC18-E3 | 18 | 510 | 4 | 15 | 11 | 15 | 1325 | P5 B-SECURUS |
VAC25-E3 | 25.2 | 714 | 5 | 20 | 15 | 21 | 1300 | P5 B-SECURUS |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig
2) Compressor capacity referenced to standard inlet conditions.
3) 30 HP units are in a cabinet other than depicted.
E1= Single phase electric, 230 VAC/60 Hz
E3=Three phase electric, 208/230/460 VAC/60 Hz
Other voltages are available on request.
Dimensions and weight are approximate and are subject to change.
