STANDARD SCOPE OF SUPPLY

  • BAUER breathing air purification system with SECURUS
  • BAUER PLC based controller with four-line text display
  • NEMA 4 rated electrical enclosure with UL® listed control panel
  • Automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor
  • Automatic "Full" indication and compressor shutdown
  • Four (4) 6000 psig ASME code stamped air cylinders
  • Integral SCBA storage for up to twelve (12) SCBA cylinders
  • NFPA 1901 2016 edition compliant 2 position containment fill station accommodates SCBA or SCUBA cylinders up to 31" overall length
  • Unique diesel/electric dual drive system incorporating our exclusive automatic belt tensioning system
  • High gloss powder coat paint for a hard durable finish
  • Hydraulic surge brakes with breakaway actuator
  • Four (4) bank dual function cascade controls with air direction valve
  • Formed structural steel frame designed and built by BAUER
  • Roller shutter door protection for the operations panel and fill station
  • Refill port
  • CO monitor with calibration kit
  • Lunette eye hitch

SYSTEM FOOTPRINT

DIMENSIONS L X W X H inches (mm)

  • 200” x 90” x 105” (5080mm x 2286mm x 2267mm)

WEIGHT pounds (kg)

  • 8400 lb (3810 kg)

AVAILABLE ACCESSORIES

  • OPTION PACKAGE A - Telescoping light mast with four (4) 500 watt fixtures, snorkel tube for compressor air inlet integrated with light mast and 7500-watt auxiliary generator
  • OPTION PACKAGE B - Spare tire and wheel chocks with finder well storage
  • OPTION PACKAGE C - 100 ft hose reel and interior lights
  • OPTION PACKAGE D - 2 5/16" ball hitch
  • OPTION PACKAGE E - 100 1/2"L x 5 1/2"H sign boards



TECHNICAL DATA

Model Charging Rate1 Number of Stages Motor FAD2 RPM Purification System
  scfm l/min   HP kW
6000 PSIG (414 BAR)
TLC-13H 13 368 4 18 13.4 10.8 1420 P5 SECURUS
TLC-25H 25.2 714 5 27 7.5 21 1300 P5 SECURUS

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig
2) Compressor capacity referenced to standard inlet conditions

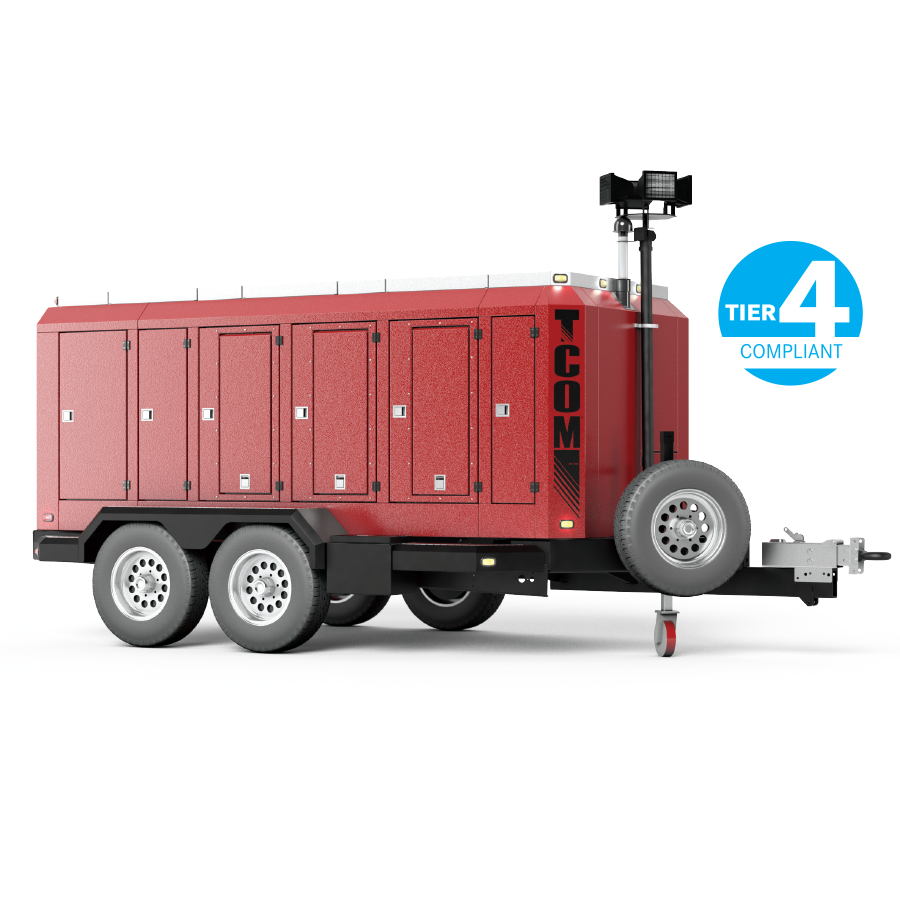

Image shown with additional accessories
Dimensions and weights are approximate and are subject to change
