SYSTEM FOOTPRINT

DIMENSIONS L X W X H inches (mm)

  • 24.5 x 24 x 55 (52 x 60 x 140 )

WEIGHT pounds (kg)

  • 176.37 (80)





COST OF OWNERSHIP

Like all BAUER compressors and controllers, the system is designed for long periods between maintenance intervals and has a very low cost of ownership.

  • Lifetime BAUER support

STANDARD SCOPE OF SUPPLY

A state-of-the-art control system with True Track Ramping and an intuitive interface allows for simple operation.

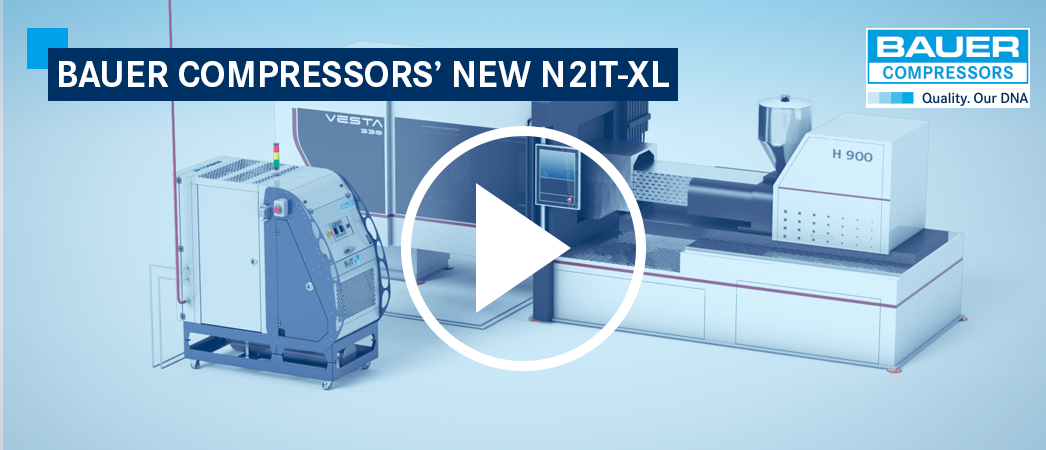

The N2IT® XL includes EUROMAP 62 interface, and can easily be connected with any injection molding machine in your facility.

  • Real-time accurate diagnostics
  • Remote interface via smartphone option
  • On-screen manual and maintenance instructions
  • Three Stage, air cooled, reciprocating Compressor
  • Lubricated crankcase
  • 230v 60hz, Single phase (220v 50hz, 3 phase available)
  • High durability membrane air separators
  • Electric motor (ODP) with belt drive
  • Pre membrane filters (particulate, moisture, and hydrocarbons)
  • On/Off switch
  • Automatic condensate collector with high condensate level switch
  • Compressor high-temperature switch
  • UL® labeled Control panel with PLC controller. Master central system includes interactive touchscreen interface for operation, maintenance, and troubleshooting
  • 7” Siemens touch screen (SD card upgradable)
  • Single point power supply connection
  • Nitrogen purity monitoring
  • Integrated storage vessel
  • Multiple pressure sensors including: supply pressure, compressor inlet pressure, and process pressure
  • Emergency stop push button
  • Light tower for alarm annunciation
  • 15’ power cord
  • Ambient temperature range 40° F to 113° F

TECHNICAL DATA

Model Nitrogen Flow at 98.0% Purity Feed Air Required at: 101.5 PSIG (7 BAR) Motor
  SCFM M3/HR SCFM M3/HR HP kW
5000 PSIG (414 BAR)
N2IT XL 5 8.5 25 42.5 5 3.7

1) Capacity (FGD) is referenced to standard conditions. Tolerance +/- 5%.
2) Purity reflects the content of 02-free gas produced. Dimensions and weight are approximate.
Volume flow rate is according to ISO 1217 with the following standard conditions: Inlet air pressure = sea level, 14.5 psig (1 bar) Inlet air temperature = 68° F (20° C) Relative Water Vapor Pressure = 0
Contact BAUER for site conditions that are other than standard. Correction factors may apply that may derate performance.
