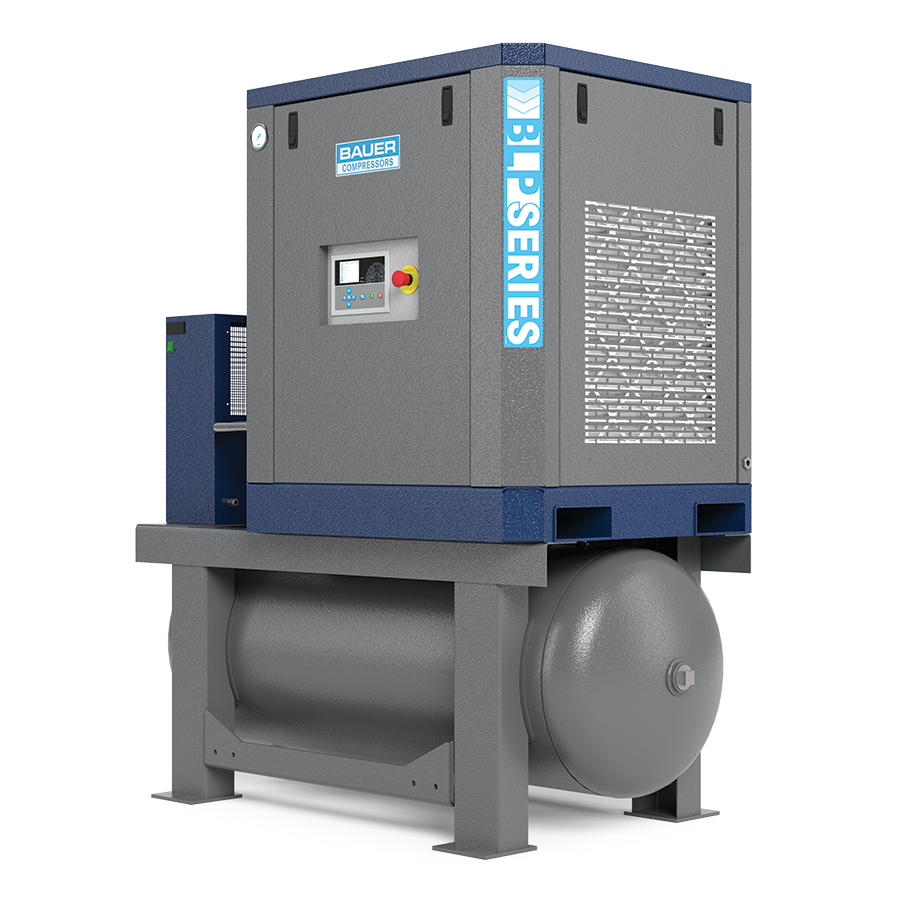

To see the BLP 3 Series Flyer
STANDARD SCOPE OF SUPPLY
- BAUER ROTORCOMP® EVO-NK high-efficiency screw air end with integrated air/oil separator manifold
- 120-gallon horizontal receiver tank
- Refrigerated Dryer
- Oil filter, inlet air filter, air/oil separator
- Horizontal belt-drive with NEMA ODP motor
- Air/oil cooler with NEMA motor
- BAUER B-Control™ with touchscreen HMI
- BAUER CONNECT® IoT remote monitoring module
- Noise attenuation enclosure
- Stainless steel tubing
- 3-year bumper to bumper warranty
SYSTEM OPTIONS
- B-DETECTION™ air quality monitoring system
- Compressor module only option without receiver tank and refrigerated dryer
SYSTEM FOOTPRINT
DIMENSIONS L X W X H inches (mm)
- 73.781” x 36.75” x 73.875” (1874.04mm x 933.45mm x 1876.43mm)
WEIGHT pounds (kg)
- 2000 lb (907.18 kg)
BLP 3 SERIES TECHNICAL DATA
| Model | Motor | Compressor Speed | Discharge Pressure | Max Flow | |||
| HP | kW | RPM | PSIG | BAR | SCFM | M3/H | |
| BLP 3-15 Series | |||||||
| BLP 3-15 | 15 | 11 | 5004 | 125 | 9 | 57 | 97 |
| BLP 3-15 | 15 | 11 | 4550 | 145 | 10 | 57 | 89 |
| BLP 3-15 | 15 | 11 | 4094 | 175 | 12 | 47 | 80 |
| BLP 3-20 Series | |||||||
| BLP 3-20 | 20 | 15 | 6558 | 125 | 9 | 76 | 130 |
| BLP 3-20 | 20 | 15 | 6113 | 145 | 10 | 72 | 122 |
| BLP 3-20 | 20 | 15 | 5532 | 175 | 12 | 64 | 109 |
| BLP 3-25 Series | |||||||
| BLP 3-25 | 25 | 18.5 | 7854 | 125 | 9 | 93 | 158 |
| BLP 3-25 | 25 | 18.5 | 7377 | 145 | 10 | 87 | 147 |
| BLP 3-25 | 25 | 18.5 | 6881 | 175 | 12 | 77 | 131 |
Performance values shown are based on the following reference conditions: ISO 1217 (14.5 psi, 68 °F, 0% RH). Air temperature at compressor inlet is 68˚F . Discharge pressure at compressor skid edge.
