BAUER SECURUS
WORLDWIDE LEADER:
- Compressors
- Purification and filtration
ANODIZED ALUMINUM FILTER HOUSING:
- Filter cartridge end caps are machine crimped
- Eliminating glues/friction welding
ANODIZED ALUMINUM FILTER CHAMBERS:
- Each chamber and plug assembly are serialized to assure system traceability
CHROMIUM STEEL FINAL SEPARATOR
BAUER SECURUS CARTRIDGE
SECURUS - Electronic Moisture Monitor System
A factory-installed system that warns the operator of the expiration of the life of the cartridges.
The SECURUS Transmitter receives signals concerning the condition of the drying agent inside the SECURUS cartridge from the attached sensors. It supplies the appropriate control signals whenever the preset threshold values have been reached.
SECURUS® Cartridge
The SECURUS® Cartridge is packed with a catalyst that converts carbon monoxide to carbon dioxide, activated carbon that absorbs oil vapors, a molecular sieve, which absorbs oil and water, and the sensor components of the SECURUS® Electronic Moisture Monitor System.
SECURUS® Transmitter
The Securus® Transmitter relays the operating condition of the SecurusII® Electronic Moisture Monitor System to the operator control interface.
The SecurusII® issues a warning when the SECURUS® cartridge is approaching saturation to warn the user to prepare to change the SECURUS® cartridge.
Once the SECURUS® cartridge has reached total saturation, the SECURUS® monitor will issue an alarm condition to the operator interface and shut down the unit.
The operator can restart the compressor unit once the SECURUS® cartridge has been replaced with a new one.
Purification System Designs

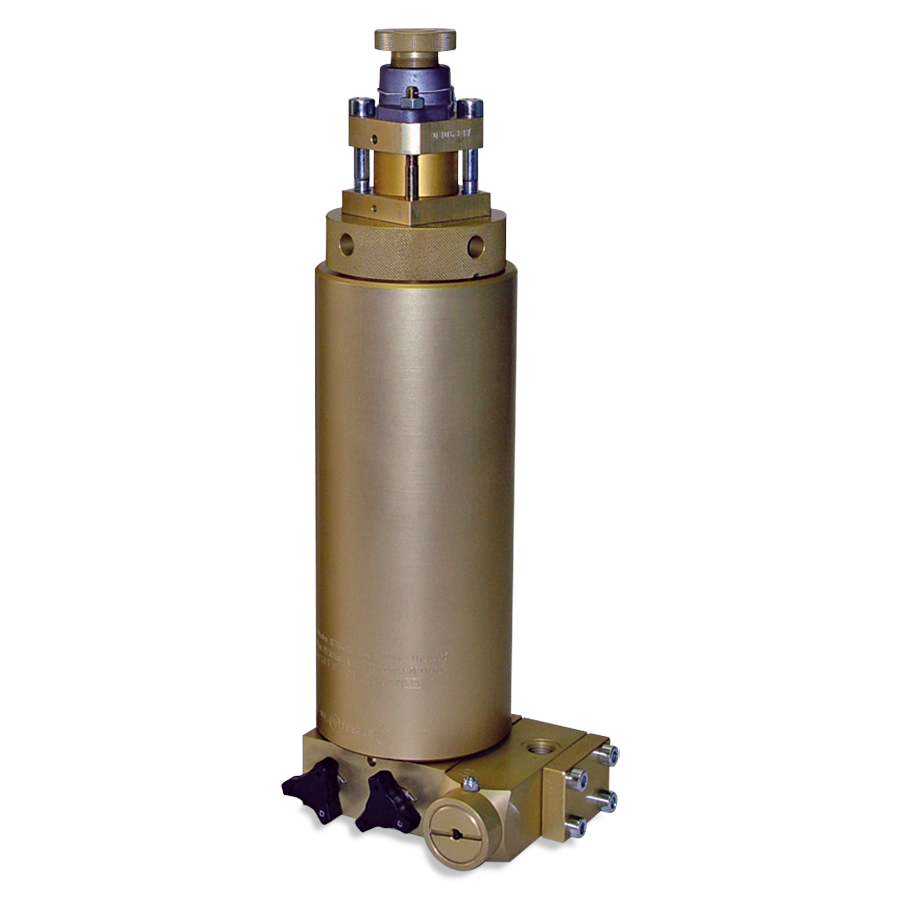

P0 TRIPLEX

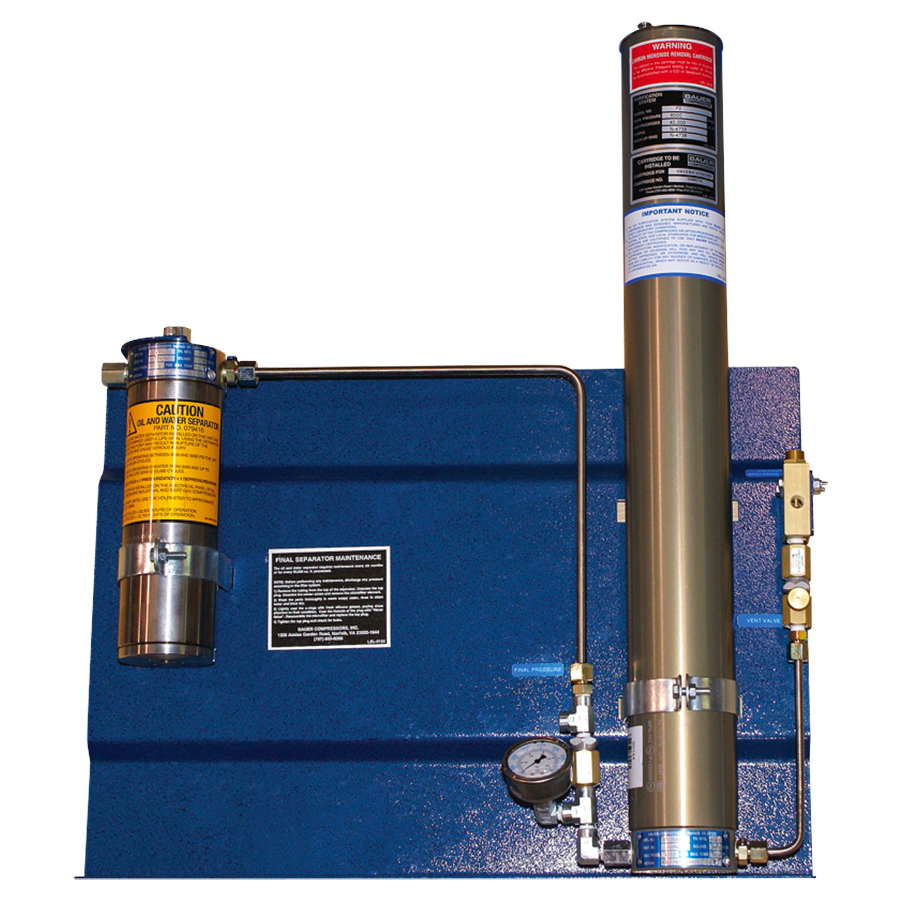

P2

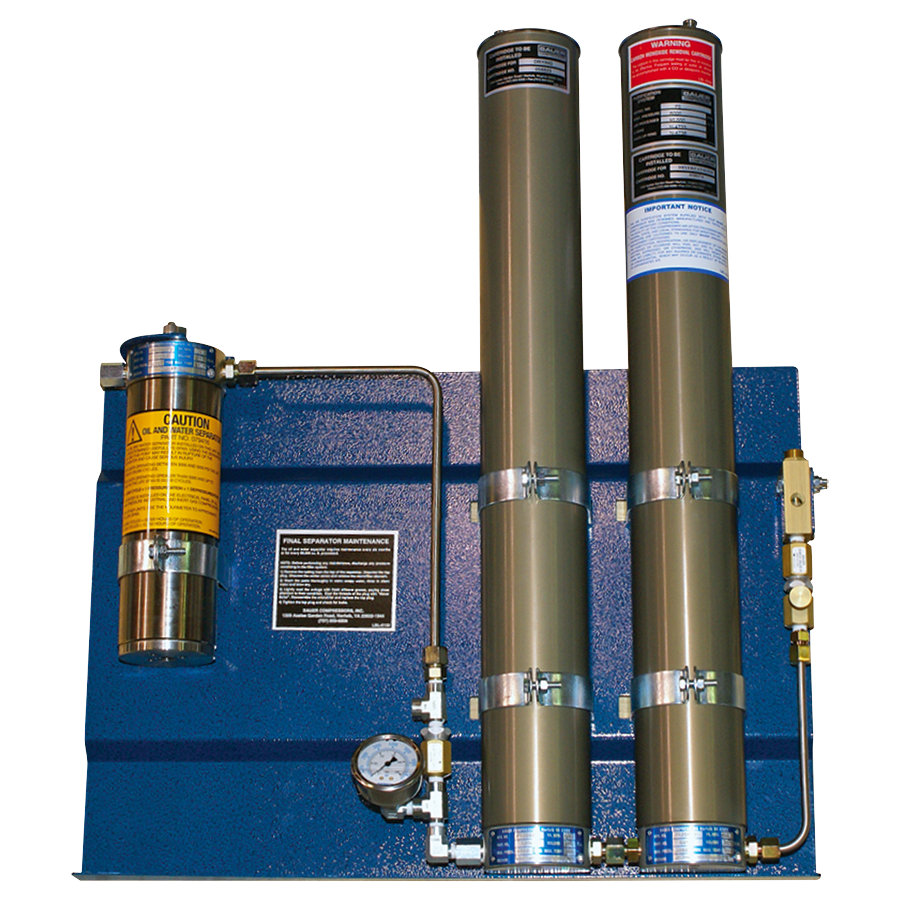

P5
P31 SUPER TRIPLEX
P10
P42
TECHNICAL DATA
| Purificattion | Number and Type of Cartridges | Processing Capacity | |||
| Dryer | Purification | SECURUS | cubic ft (ft)3 | ||
| P02 | Combined | 3,200 | |||
| P1 | - | 1 | - | 15,000 | |
| P2 | - | 1 | - | 40,000 | |
| P2 SECURUS | - | - | 1 | 67,000 | |
| P4 | 1 | 1 | - | 60,000 | |
| P5 | 1 | 1 | - | 90,000 | |
| P5 SECURUS | 1 | - | 1 | 150,000 | |
| P10 | 2 | 1 | - | 140,000 | |
| P10 SECURUS | 2 | - | 1 | 230,000 | |
| P12* | 1 | 1 | - | 420,000 | |
| P14* | 2 | 1 | - | 650,000 | |
| P312 | Combined | 11,760 | |||
| P41 | - | 1 | - | 28,700 | |
| P41 SECURUS | - | - | 1 | 47,000 | |
| P42 | 1 | 1 | - | 64,000 | |
| P42 SECURUS | 1 | - | 1 | 107,000 | |
| P43 | 2 | 1 | - | 100,000 | |
| P43 SECURUS | 2 | - | 1 | 164,000 | |
| P81 | 1 | 1 | - | 124,000 | |
| P81 SECURUS | 1 | - | 1 | 198,000 | |
* P12 and P14 only available with SECURUS.
1) Air Processing Capability based on standard inlet conditions, 68° F, a Pressure of 14.70 psig and a relative humidity of 36% (0.0750 density).
2) 5000 psig Maximum Pressure, Triplex Design is not incorporated on a panel.
QUICK ACCESS LIST OF MOST USED CARTRIDGES
| PART NUMBER | DESCRIPTION |
| 060037A | CTG,SECURUS;MS/MS/AC/MS/HP27" (BCI) |
| 058825A | CTG,DRYER;MS,27" (BCI) |
| 065562 | CTG,PURIF;HP/HP/HP/HP,27"HI-FL |
| 067099 | CTG,DRYER;MS/MS/MS,HI-FLO,27" |
| 058827A | CTG,PURIF;MS/AC/MS/HP,27"(BCI) |
| 058821A | CTG,PURIF;MS/AC/MS/HP,10"(BCI) |
| 059183A | CTG,PURIF;MS/AC/MS/HP, PO(BCI) |
| 061687 | CTG,SECUR;MS/MS/AC/MS/SC/HP,20" |
| 067224 | CTG,PURIFICATION;20",MS/AC/HP |
| 080114 | CTG, SUPER TRIPLEX P31; MS,AC,HP |
Abbreviation:
MS- Molecular Sieve- Drying Element
AC- Activated Carbon- Oil and TVOC
HP- Hopcalite Catalyst – Carbon monoxide
