SYSTEM FOOTPRINT
DIMENSIONS L x W x H inches (mm)

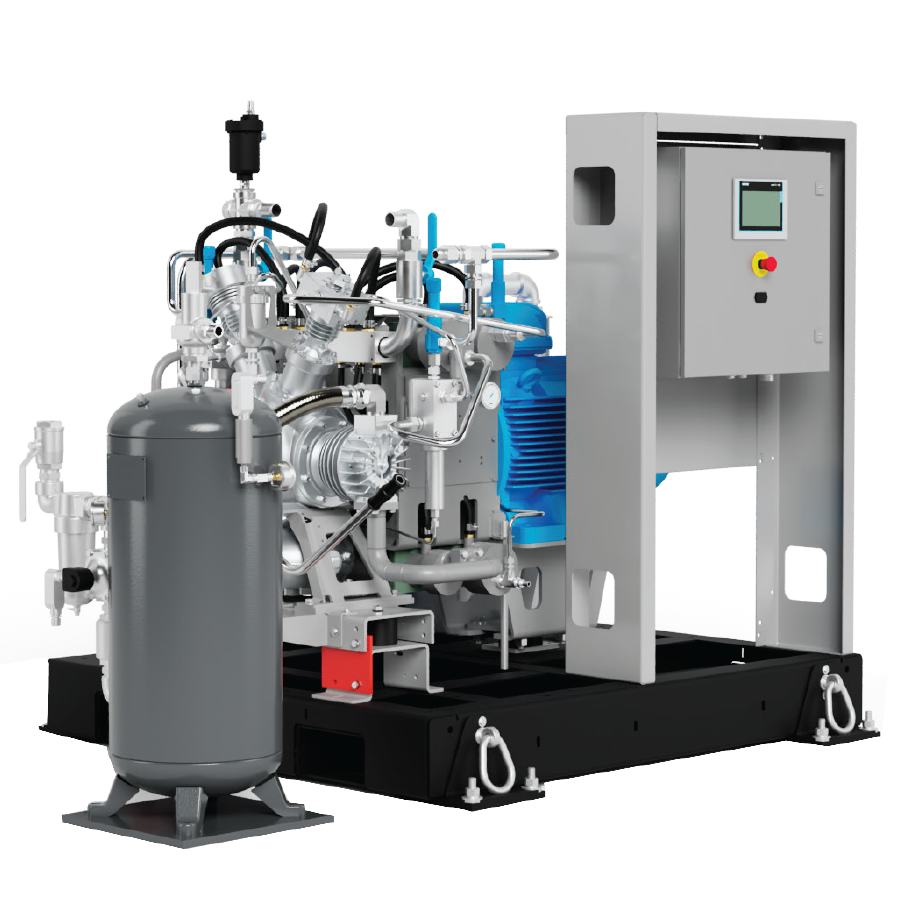

Open Design
- 76” x 68” x 69” (1930mm x1753mm x 1753mm) without buffer tank
- 18” x 33” x 52” (457mm x838mm x 1321mm) buffer tank
WEIGHT pounds (kg)
Open Design
- 5,000 lb (2268 kg) with buffer tank
- 4,750 lb (2155 kg) without buffer tank
BENEFITS
- Robust Build for Offshore Environments - All RigForce™ systems are designed to operate continuously under severe offshore conditions in high salt, high temperature, and high humidity environments
- Compact Footprint - High-pressure distribution of instrument air throughout the facility is much more efficient and requires smaller diameter piping than low pressure distribution
- Energy Efficient - Offshore power is premium, therefore, all BAUER RigForce™ systems are built to minimize energy usage on or below deck
- Low Cost of Ownership - BAUER systems are known for the lowest cost of ownership in the industry: high quality to reduce maintenance costs over time
| Model | Inlet Pressure | Capacity FAD1 | RPM | Number of Stages | Motor | Drive | |||
| PSIG | BAR | SCFM | m3/HR | HP | kW | ||||
| UP TO 5000 PSIG OPERATING PRESSURE (ELEVATED INLET PRESSURE)2 | |||||||||
| IB 23.10 | 29-65 | 2-4.5 | 50-91 | 84-155 | 1170 | 4 | 60 | 45 | E3 |
| IB23.12 | 65-145 | 4.5-10 | 60-121 | 102-206 | 1170 | 4 | 60 | 45 | E3 |
| IB23.13 | 116-203 | 8-14 | 74-124 | 126-210 | 1170 | 4 | 50 | 37 | E3 |
1) Volume flow rate according to ISO 1217.
2) Lower inlet pressure can result in lower operating pressure.
E3=460/3/60
Other voltages and frequencies are available upon request.
