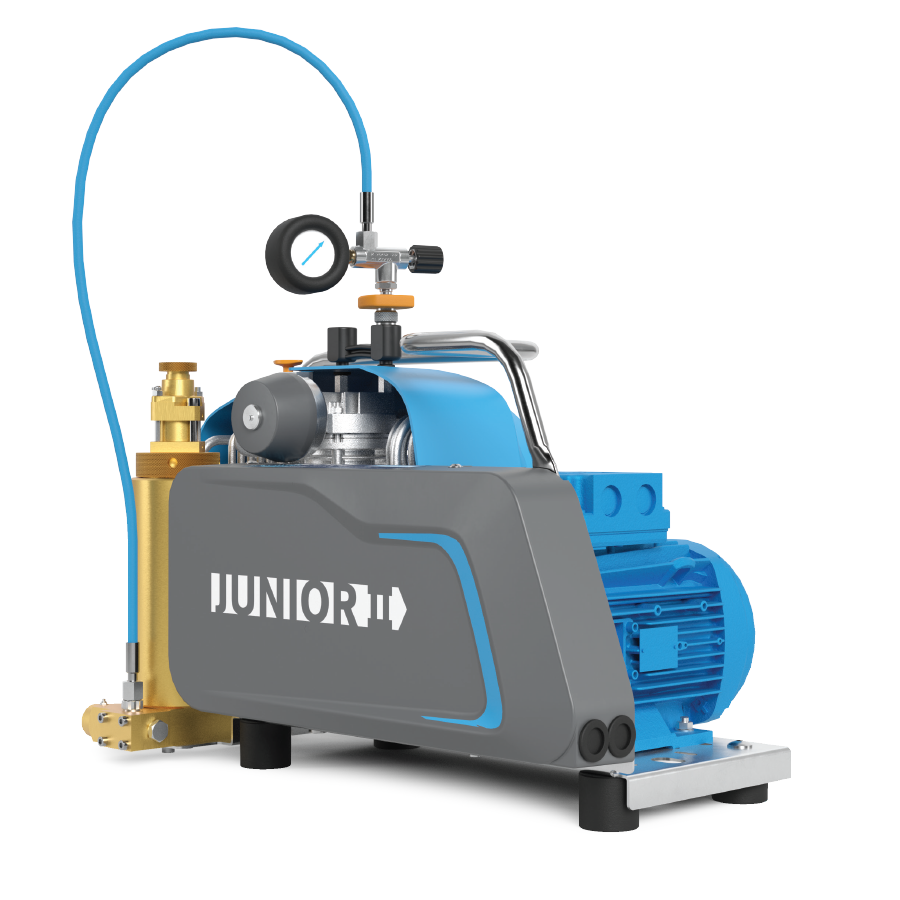

JUNIOR II

SYSTEM FOOTPRINT

DIMENSIONS L x W x H inches (mm)

JRII-E1/E3

  • 27” x 14” x 17” (686mm x 356mm x 432mm)

JRII-GK

  • 31” x 14” x 17” (787mm x 356mm x 432mm)

JRII-EY

  • 32” x 16” x 24” (813mm x 406.4mm x 610mm)

WEIGHT pounds (kg)

  • 89-165 lbs (40-75 kg)

OCEANUS

SYSTEM FOOTPRINT

DIMENSIONS L x W x H inches (mm)

OCEANUS-E1/E3

  • 27” x 17” x 17” (686mm x 432mm x 432mm)

OCEANUS-GK

  • 31” x 14” x 17” (787mm x 356mm x 432mm)

OCEANUS-EY

  • 32” x 20” x 17” (686mm x 432mm x 432mm)

WEIGHT pounds (kg)

  • 96-135 lbs (44-61 kg)

TECHNICAL DATA

Model Charging Rate1 Number of Stages Motor FAD2 RPM Purification System
  SCFM l/min   HP kW
JUNIOR II 5000 PSIG (345 BAR)
JRII-E1/115 2.9 82 3 2 1.5 2.5 1500 P0
JRII-E1 3.9 110 3 3 2.2 3.2 2100 P0
JRII-E3 3.9 110 3 3 2.2 3.2 2100 P0
JRII-GK 4.3 122 3 6 4.5 3.6 2300 P0
JUNIOR II YACHTING PACKAGE
JRII-E1Y/115 2.9 82 3 2 1.5 2.5 1500 P0
JRII-E1Y 3.9 110 3 3 2.2 3.2 2100 P0
JRII-E3Y 3.9 110 3 3 2.2 3.2 2100 P0
OCEAN 5000 PSIG (345 BAR)
OCEANUS-E1 4.9 139 3 5 3.7 4.1 2150 P0
OCEANUS-E3 4.9 139 3 5 3.7 4.1 2150 P0
OCEANUS-GK 4.9 139 3 6 4.5 4.1 2150 P0
OCEANUS YACHTING PACKAGE
OCEANUS-E1Y 4.9 139 3 5 3.7 4.1 2150 P0
OCEANUS-E3Y 4.9 139 3 5 3.7 4.1 2150 P0

NOTE: JRII is designed for filling an individual SCUBA or SCBA. It is neither designed nor intended for filling cascade storage systems of any kind.
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig
2) Compressor capacity referenced to standard inlet conditions.

E1/115 = Single phase electric, 115VAC/60 Hz
E1 = Single phase electric, 230 VAC/60 Hz
E3 = Three Phase Electric, 208/230/460 VAC/60 Hz
G = Gasoline engine drive, SUBARU
Y = Yachting package

Dimensions and weights are approximate and are subject to change
