SYSTEM FOOTPRINT
DIMENSIONS L X W X H inches (mm) approx.
- 297.6” L X 99.6” W X 117” H (7559mm x 2529.84mm x 2971.8mm)
WEIGHT pounds (kg) approx.
- 22700 lbs (10297 kgs)
TECHNICAL DATA
| Model | Number of Stages | Running Speed | Motor Power | Inlet Pressure Range | Final Pressure1 | Flow Capacity at Min/Max Inlet Pressure | |||||
| RPM | hp | kW | PSIG | BARG | PSIG | BARG | SCFM | m3/h | kg/hr | ||

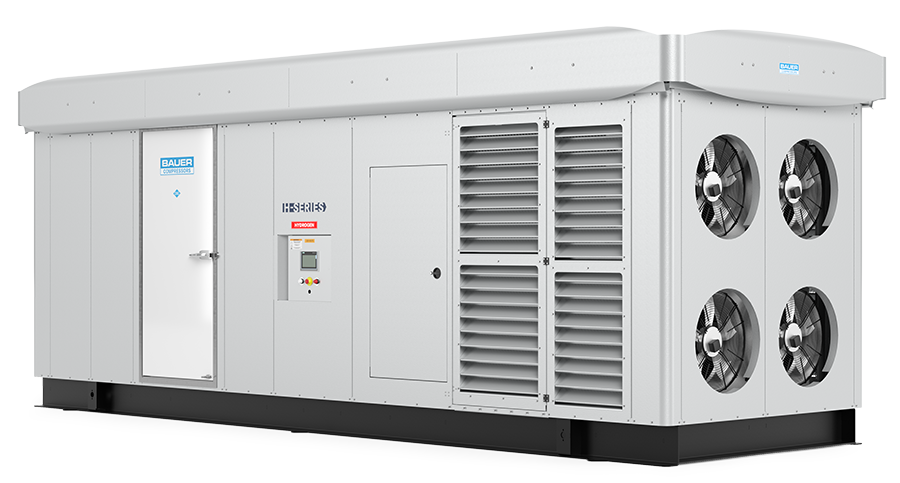

| H-Series 6 | |||||||||||
| H52.10 | 4 | 1450 | 350 | 261 | 30-65 | 2.0-4.5 | 5300 | 365 | 253-465 | 430-790 | 38.6-71 |
Note: All capacities are referenced to sea level, 15°C (59° F ) gas inlet temperature and 20°C (68°F) ambient temperature, dry gas. Flow measured at compressor inlet according to ISO 1217.
Tolerance +/- 5%. Motor power is referenced to maximum inlet pressure and discharge pressure. Consult BAUER for performance at other conditions.
